How does it work?

Vital Injector is a non-invasive intradermal injecting device using a syringe. It maximizes the treatment effect and shortens the procedure time by adopting 5 multi-Needles.


TECHNOLOGY

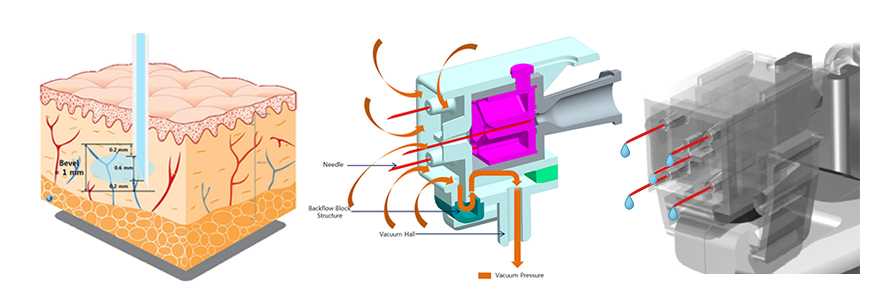

Vital Injector injects drug accurately and equally by adopting 5 multi-Needles. Its safe vacuum technique minimizes drug loss and alleviates pain by improving the speed of needling. It is the system with the convenient needles and a removable syringe.


Advantage


A . Design of Trigger
The trigger is designed to maintain the center of gravity of the device and inject steadily while handling for the treatment.

B . 5 Multi-Needle
Maximizing the treatment effect by adopting 5 Multi-Needles! Convenient removable Multi- needles system, alleviating pain by improving the speed of needling.

C . Various types of Syringes are applicable
4 syringe types(1cc, 2cc, 3cc & 5cc) can be applied and highly compatible.

D . Display Panel
It shows Information for the treatment like the number of injection, the depth of needle penetration, drug dosage, and the operation mode, etc.

E . Move Forward & Back Button . Standby/Ready Button
Control button.

F . Position Holder
Stable performance of the syringe pusher by installing the screw shaped fastening device.

G . System cable
You can charge it on the provided cable mounting charger.

H .Main Body
The LCD touch screen enables you to control the number of injection, the depth of needle penetration, drug dosage, the operation mode, and the speed/vacuum Level.

I . Filter
Hygienic maintenance with regular changes of filters located in the lower part of the product.

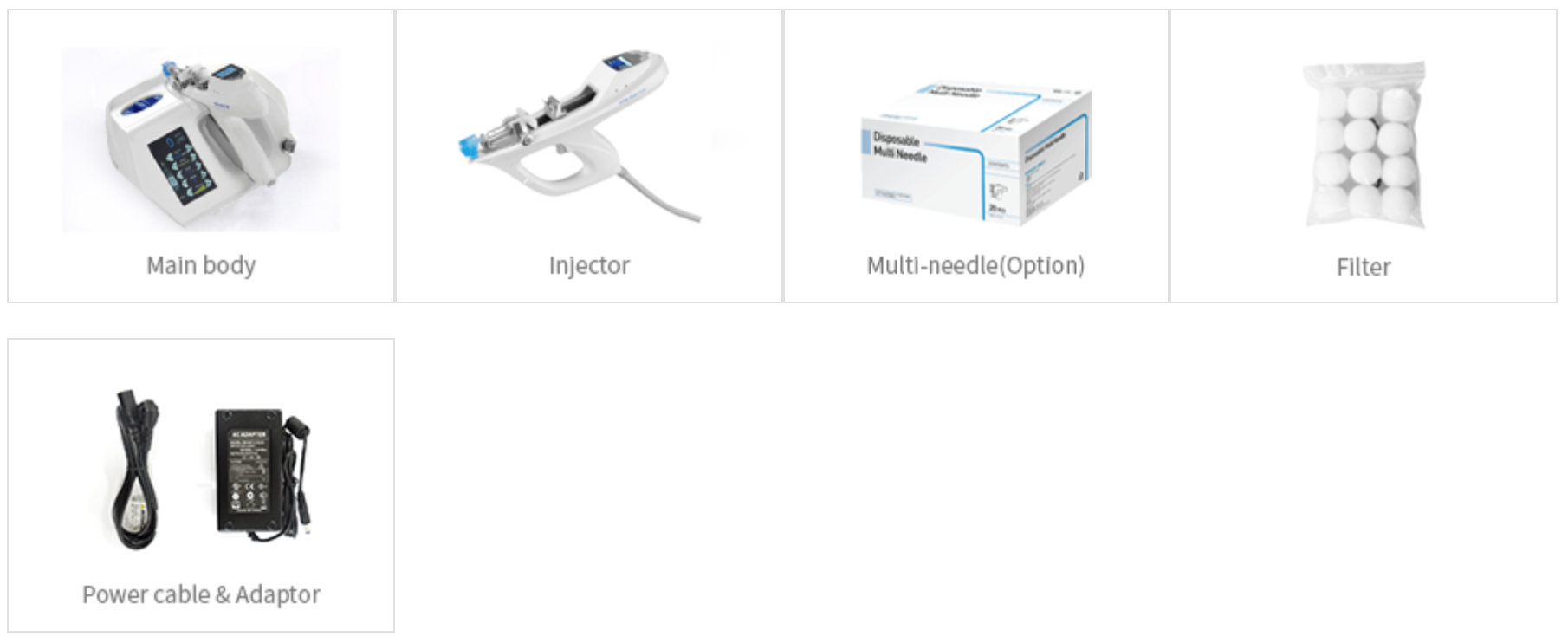

component

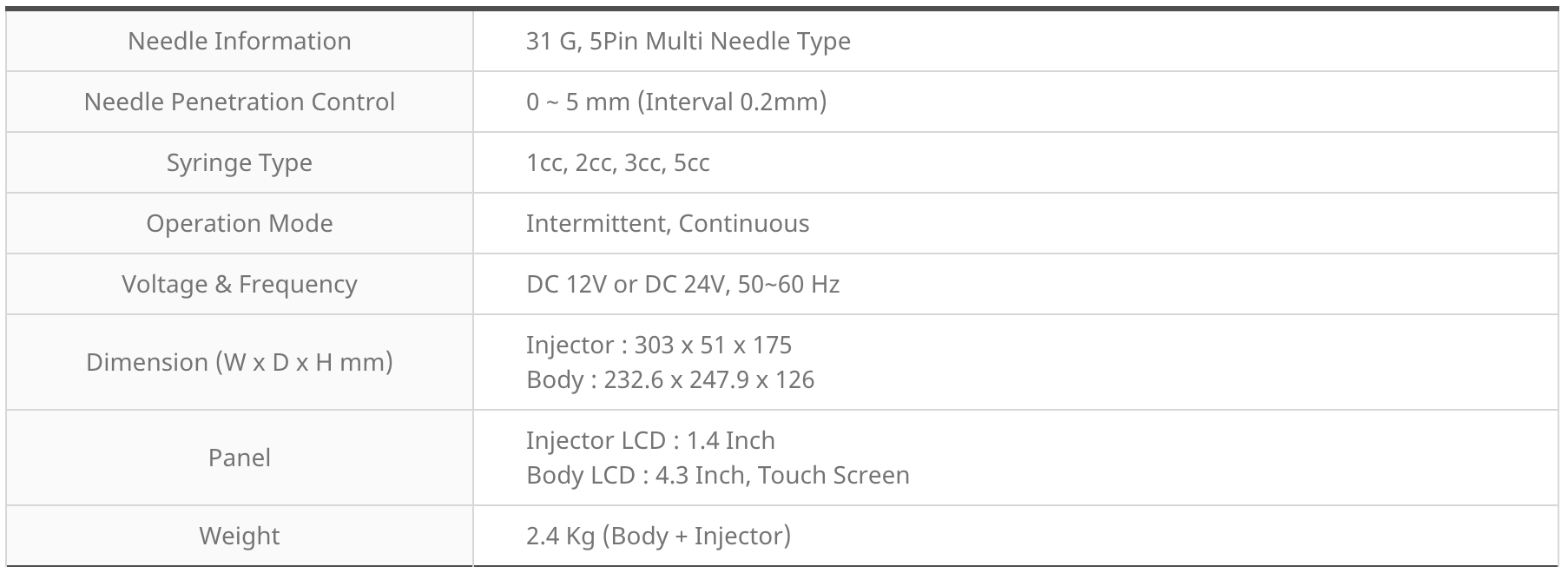

SPECIFICATIONS
