How does it work?

Most optimized HIFU technology ever, unique and effective aesthetic device built on ultrasound technology to deliver face-lifting & custom contouring fat reduction for body. The Microson Dual is HIFU(High-Intensity Focused Ultrasound) system for facial lifting by producing focal thermal coagulation points (TCPs) at the superficial musculoaponeurotic system (SMAS), deep dermis & subcutaneous adipose tissue. The Microson Dual is non-invasive, non-surgical ultrasound lifting system providing facial & body lifting effect without causing superficial damages.


TECHNOLOGY


FOR FACE

[4.5mm] SMAS
The SMAS layer is an area of musculature of the face that exists in 4.5mm depth from the skin surface. The SMAS layer is composed of collagen and elastic fibers and plays role of delivering muscle contraction to the skin surface. The Microson Dual enables nonsurgical facial lifting by producing TCPs in SMAS layers.

[3.0mm] Lower dermis
Deep dermis at 3.0mm depth from skin surface is connected to SMAS layers by fibrous septa. The Microson Dual is able to promote facial lifting and collagen regeneration by producting TCPs in deep dermis.

[1.5mm] Upper dermis
The Microson Dual induce wrinkle improvement by promotion of superficial dermal neocollagenesis through production of TCPs in collagen-rich dermis later of 1.5mm depth.


FOR BODY

[13mm] Subcutaneous adipose tissue
Temperature of fat layer induces reduction of the fat layer through the coagulation necrosis of adipocytes at over 56 degrees. Efficiently reduces fat layer by applying HIFU onto 13mm depth from the skin surface at the part with thick layer of fat in the body such as the abdomen area. High intensity ultrasound energy focuses on the targeted fat instantaneous result in cell death via coagulative necrosis and create lesions within affected fat cells and are removed throughout the body’s nature healing & elimination process.


Advantage


A . Durable Handpiece
– Button Type Handpiece
– Ergonomic handpiece design
– One device enable to treat all of the face & body part with Dual Handpiece

B . Cartridge
– Sliding detachable cartridge types
– Up to 10,000 lines per cartridge
– Optimized cartridges in 5 different types

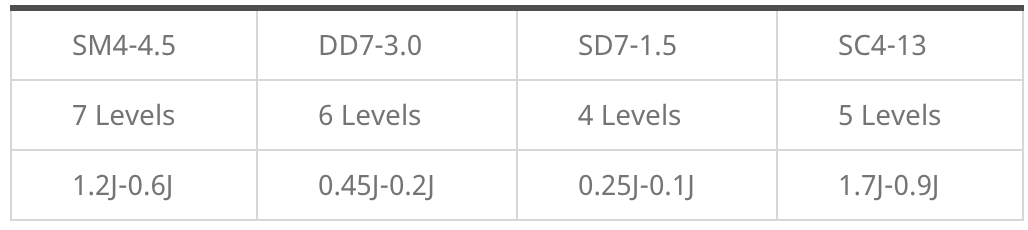

– SM4-4.5/ DD7.3.0/ SD7-1.5/ SD7-1.5N/ SC4-13

C . Operating LED
The lamp blinks while transmitting the energy to the skin.

D . Status LED
In Ready mode, the lamp turns to ‘Blue’ then if button is pressed, the lamp turns into ‘Red’

E . User friendly Interface
– 10.2 inch Touch Screen
– Can be check the shot used for each cartridge
– Animated operation for each Cartridge
– Precise control of functions

Screen Shot 2019-02-23 at 4.31.10 PM.png

F . Power button
– Red Light: system ON
– Blue Light: system OFF

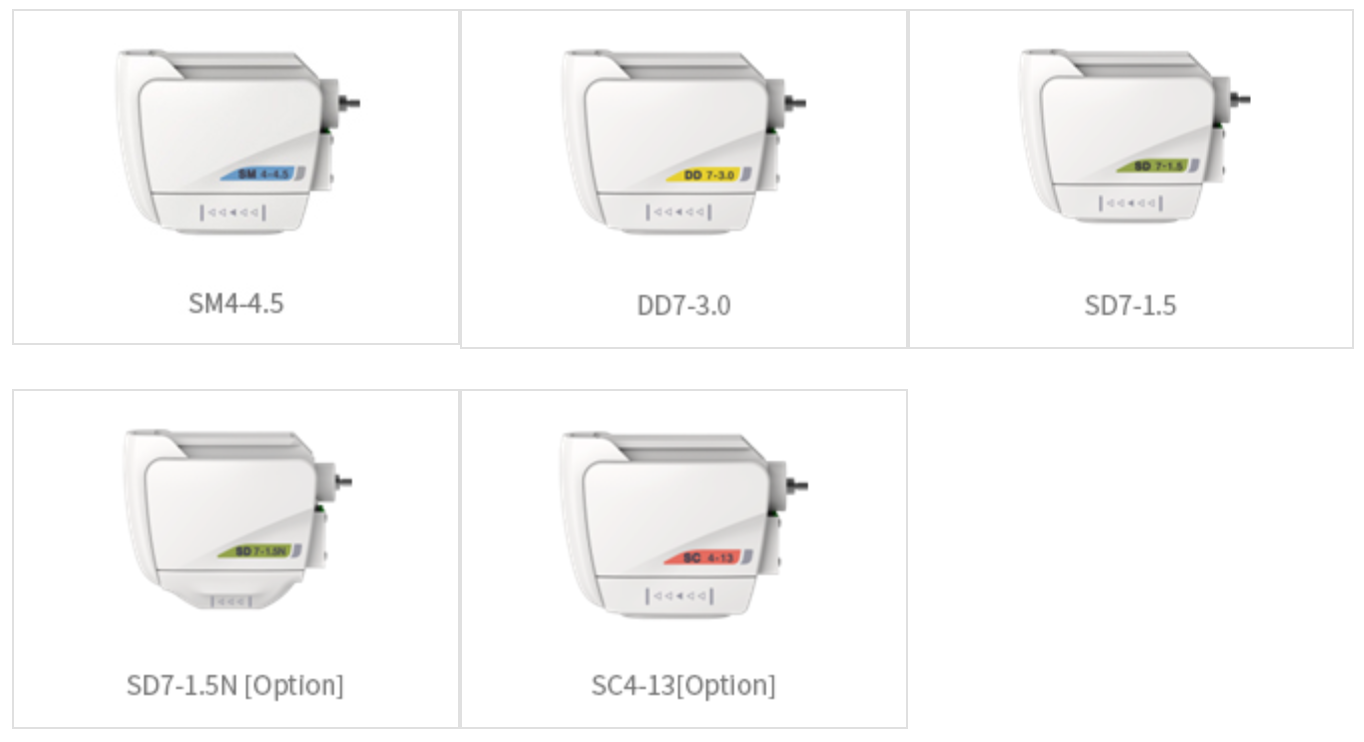

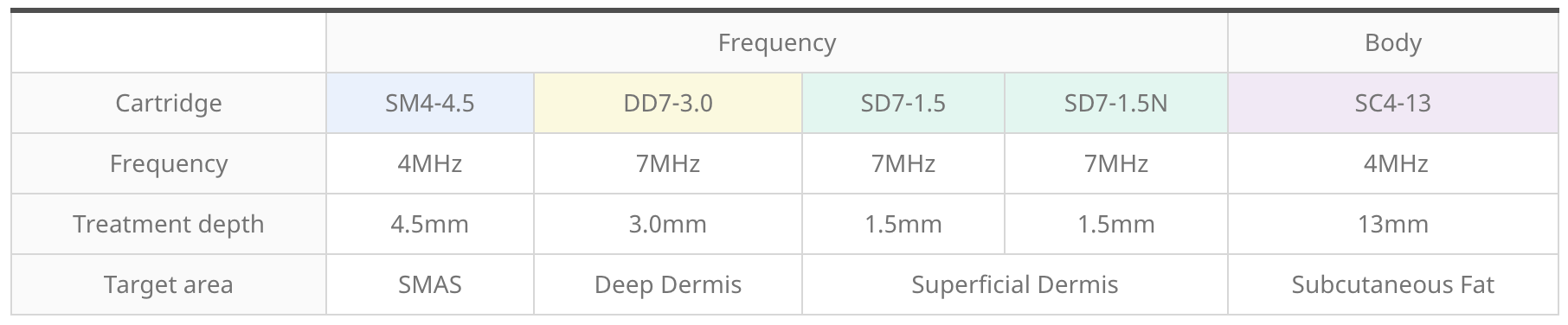

Component

Screen Shot 2019-02-23 at 4.33.23 PM.png
Screen Shot 2019-02-23 at 4.33.52 PM.png

Clinical Images

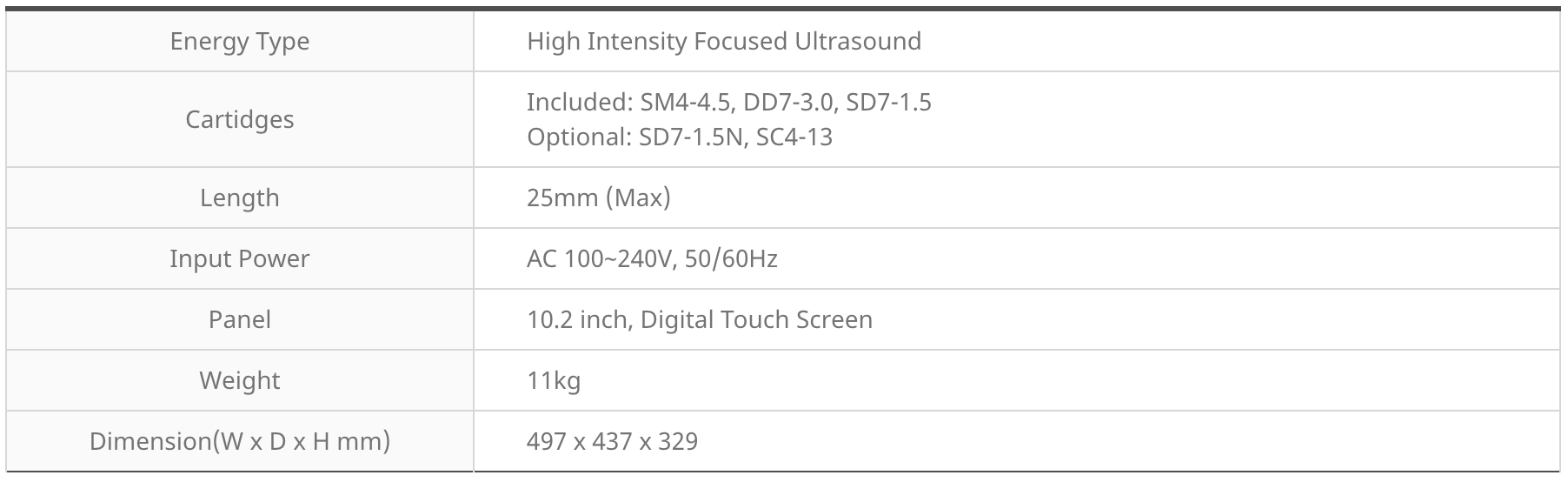

SPECIFICATIONS

Screen Shot 2019-02-23 at 4.46.56 PM.png
